Before connecting the power cord to the R1808 RV toilet, please ensure that the power supply's output voltage is stable within the DC 9V~30V range; exceeding this voltage range will directly cause damage to the toilet's circuitry.
Due to customs requirements in some countries (including the Middle East, Australia, and New Zealand), the standard solidified agent will be replaced with an equally effective super absorbent paper. This paper has been rigorously tested and provides identical absorption and water-retention performance.
If any problems arise during the order delivery process, we will notify the customer via email and discuss solutions for the problematic order's delivery.
For the United States, Australia, and Canada:
(1).Direct shipping from local warehouse (in stock)
(2).Local warehouse temporarily out of stock
For some products or regions where the local warehouse is temporarily out of stock, orders will be prioritized and shipped as soon as the stock is replenished.
If you have specific or urgent delivery requirements, please contact us before or immediately after placing your order.
We offer free shipping to addresses within the United States , Australia, Canada. For orders shipped to all other countries, a shipping fee will be charged, usually calculated based on package weight and destination, with a minimum charge of $5. Please check the final cost before checkout.
Additional service fees: You will be responsible for the cost of any additional services you request (e.g., liftgate delivery, inside delivery, etc.).
Storage fees: If the shipping company is unable to contact you or you fail to arrange delivery, they will charge you storage fees. We will do our best to notify you by phone or email to avoid these charges.
After shipment, we will provide a tracking number via email.
Tracking information is usually activated within 48 hours.
Note: All policies are subject to change, and Modiwell reserves the right of final interpretation.

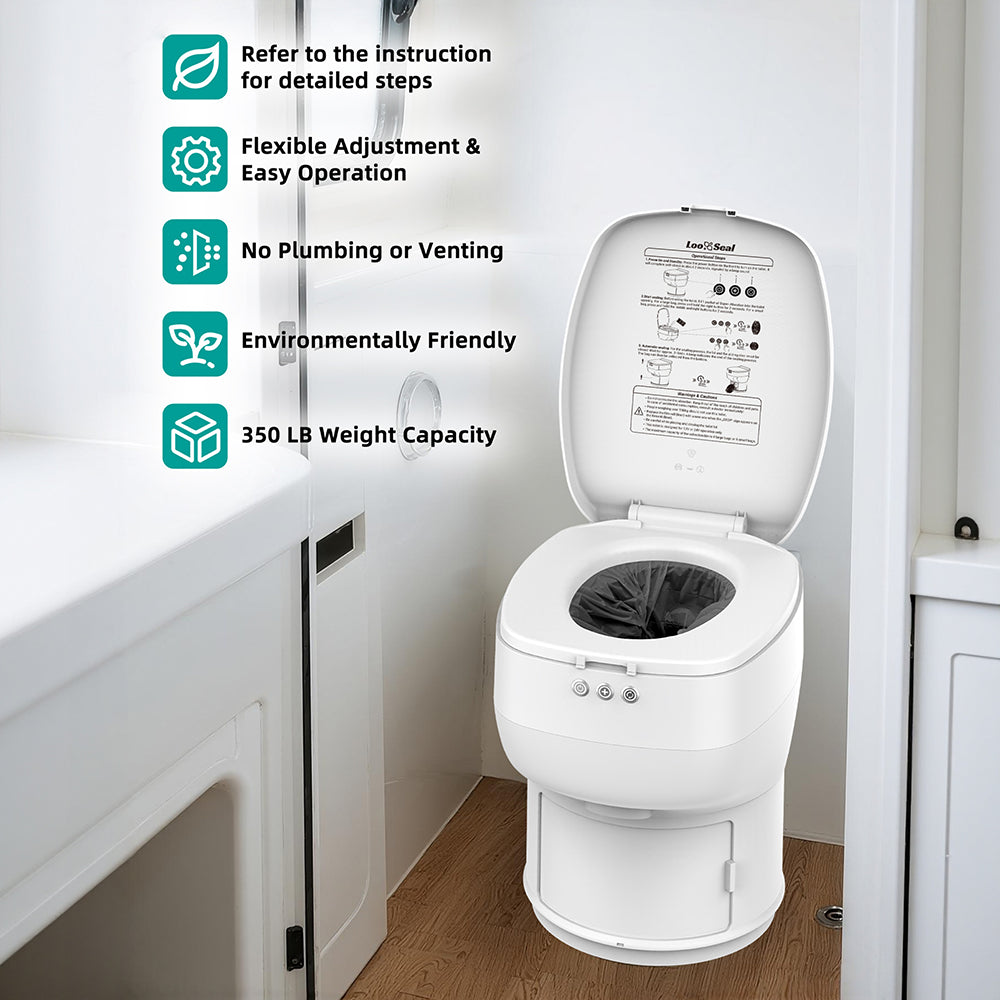

Fixed Installation
Following the provided positioning diagram, drill four screw holes and one hole for the power cord (the hole diameter should be enlarged to at least 25mm). Ensure the distance from the center of the toilet to the wall is at least 220mm. Drill holes to secure the toilet. Refer to the video for the detailed process. Regarding the choice of fixation: If your structure is suitable, please use the drilling method (screws). If drilling is not an option, you can choose to fix it with silicone sealant.
Recommended room width (approx.): 15.7"Standard home-like seat height; compact to fit most RV wet baths and small spaces.

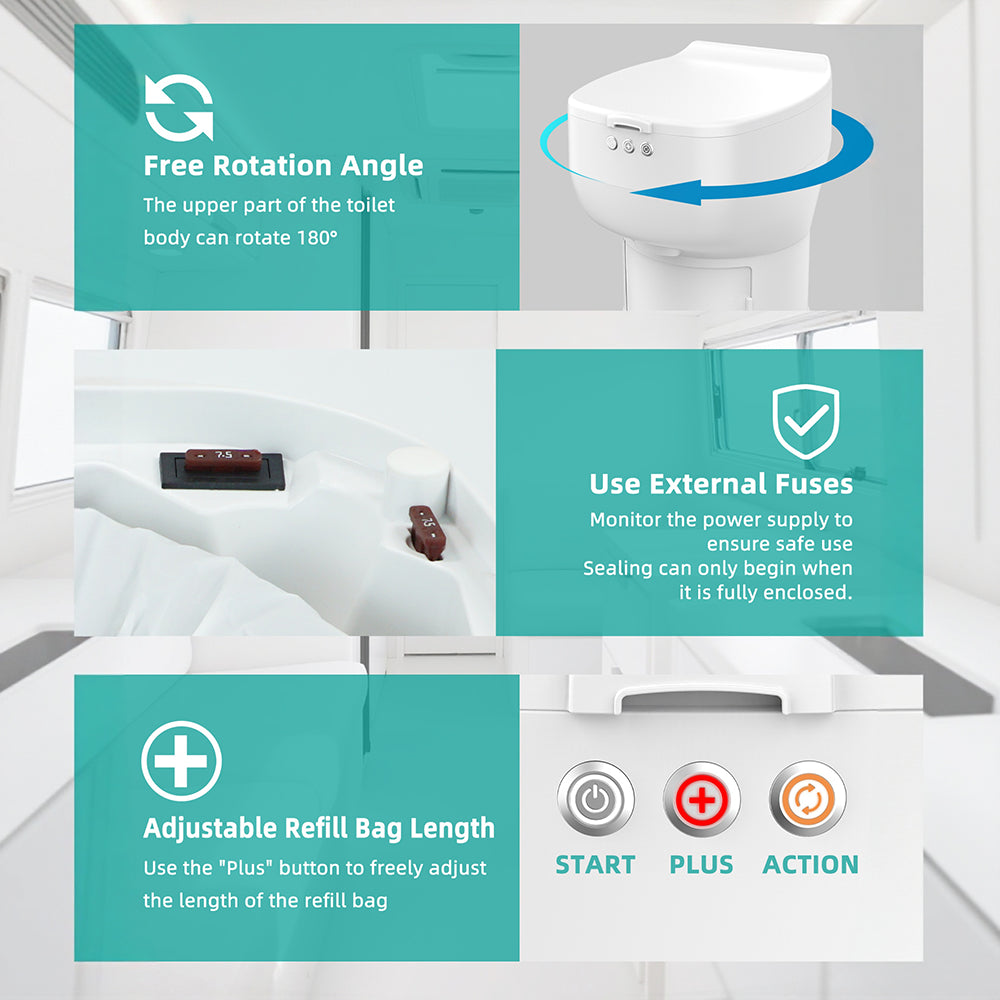

Start
PLUS
Action
Combo (PLUS + Action)
Supports direct connection to 12V/24V RV power supply. Before connecting, please ensure the power supply voltage is within the safe range of DC 9V~30V; exceeding this limit will damage the toilet's circuitry. If direct wiring is not possible, please use the dedicated R1808 charger.
The R1808 RV toilet is IPX4-certified, resisting splashes from any direction—ideal for wet-bath use, cleaning spray, and accidental splashes.
The R1808 toilet features a high-strength load-bearing structure and a multi-point support base for users of all sizes. It remains stable and stable even during bumpy rides, providing a comfortable, home-like seating experience.350 lb load capacity: Meets the demands of most adults and long-term use.Four-point support base: Evenly distributes force, minimizing the impact of vehicle vibration on the seating feel and structure.
Connect the red wire of the cable to the positive terminal of the RV or external power supply, and the black wire to the negative terminal. Ensure proper insulation and waterproofing treatments are performed.
Please confirm that the voltage must be within the range of DC 9V~30V before connecting it to the R1808 RV toilet; otherwise, the RV toilet will be damaged.
We can configure the R1808 to use a charger connection method (for non-RV use cases). If you need a dedicated charger for the R1808, please request it through your R1808 order.
| Feature | Value |
| Model | R1808 |
| Color | White |

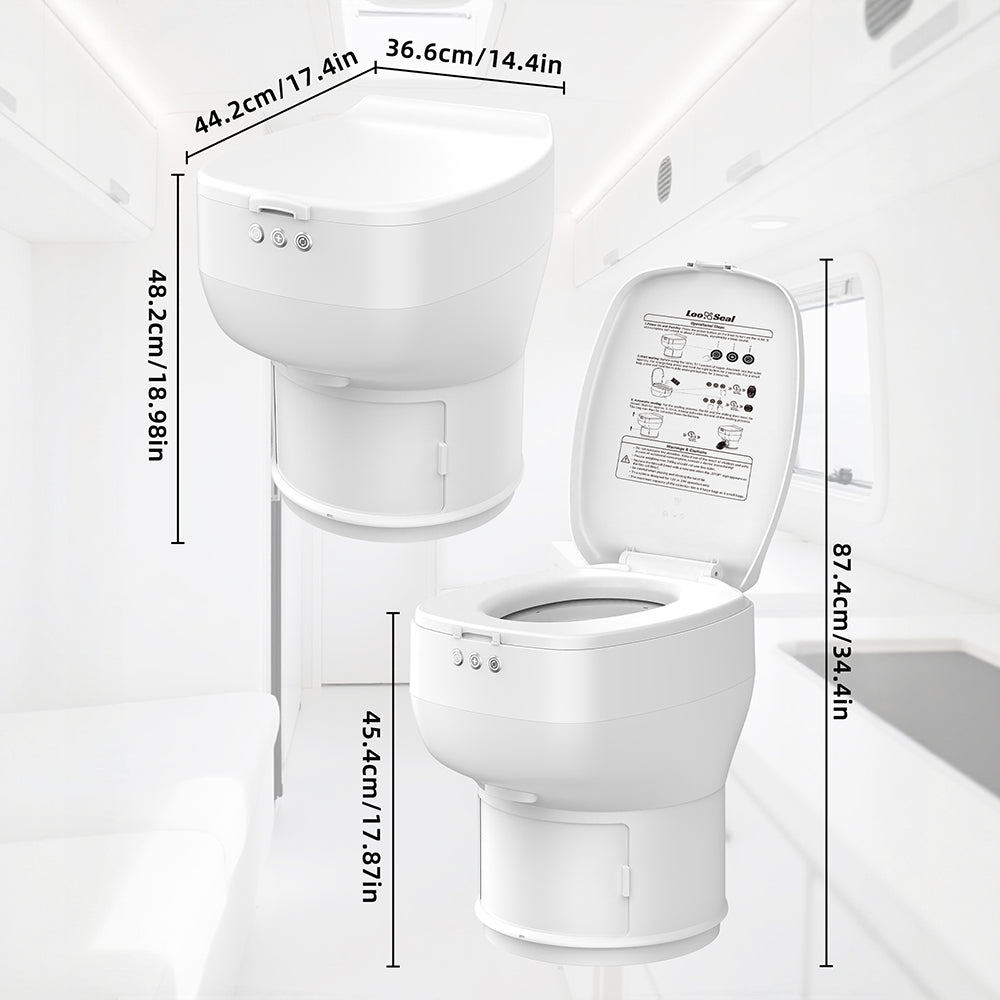

| Dimensions(lid open) | 44.2×36.6x87.4cm（DxWxH) |
| Dimensions(lid closed) | 44.2×36.6x48.2cm（DxWxH） |
| Recommended room width | 40cm |
| Seat height | 45.4cm |
| Weight | 9.7kg |
| Max.Load capacity | 150kg |
| Material | PP,ABS,POM,silicone,stainless,steel |
| Battery | Lithium-ion 55.5 Wh |
| Battery charging time | approx.2.5h |
| Battery charger | Input 9-30 VDC/ 2A |
| Batteryrange | approx.100 uses(1-2 weeks for 2 people in continuous use) |
| Performance | 60W(max) |
| Power consumption (per use) | 0.4Wh |
| Power consumption(Standby) | 0.05Wh |
| Operating conditions | 0℃-40℃,20%-80% rH |
| Storage conditions | -20℃-60℃,5%-95% rH |
| Waterproof | Yes (when toilet is closed) |
| Handle | Yes |
| Toilet lid | with soft close |
| Cycle for one Sealing process | 2-3min,depending on the ambient temperature |
| Recommended substrate | coagulant(optional consumable) |
| Fastening | Freestanding |
| Disposal of the bags | Residual waste |
